• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black
• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Grille guard screen, insect protection (mounted behind grille)
• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Grille, chrome
• Bumper, front chrome
• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Bumper, front with 4" extension
• Tires, front 225/70R19.5G traction blackwall Goodyear Max Axle Load: 7,940 lb.
• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• Auxiliary harness, 3' for headlamps and turn signals
• Fog lamps, front, halogen
• Paint, solid
• Assist Steps, aluminum
• Work light circuit provides additional wire for utility light at end of frame
• Tires, rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15,000 lb.
• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Summit White
• License plate kit, front
• Paint Scheme, Style 1
• Spare tire delete (STD)

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Windows, power with driver express up and down and express down on all other windows
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Visors, driver and front passenger, vinyl
• Seat trim, Vinyl
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Power outlet, 110-volt AC
• Key system, 2 spare keys
• Remote Keyless Entry
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Emissions, 50 state certification
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Emissions, USA 50 State certified
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear axle, 13,500 lb. (6,124 kg) Dana Spicer S14-110, single reduction
• Battery, top post threaded, battery jump start stud (located on battery box)
• 30,000 lb. GCWR (13,607 kg)
• Fuel tank, front and rear, 65 gallon total
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Batteries, heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
• Exhaust system, straight, terminates ahead of rear wheels
• Alternator, 220 amps

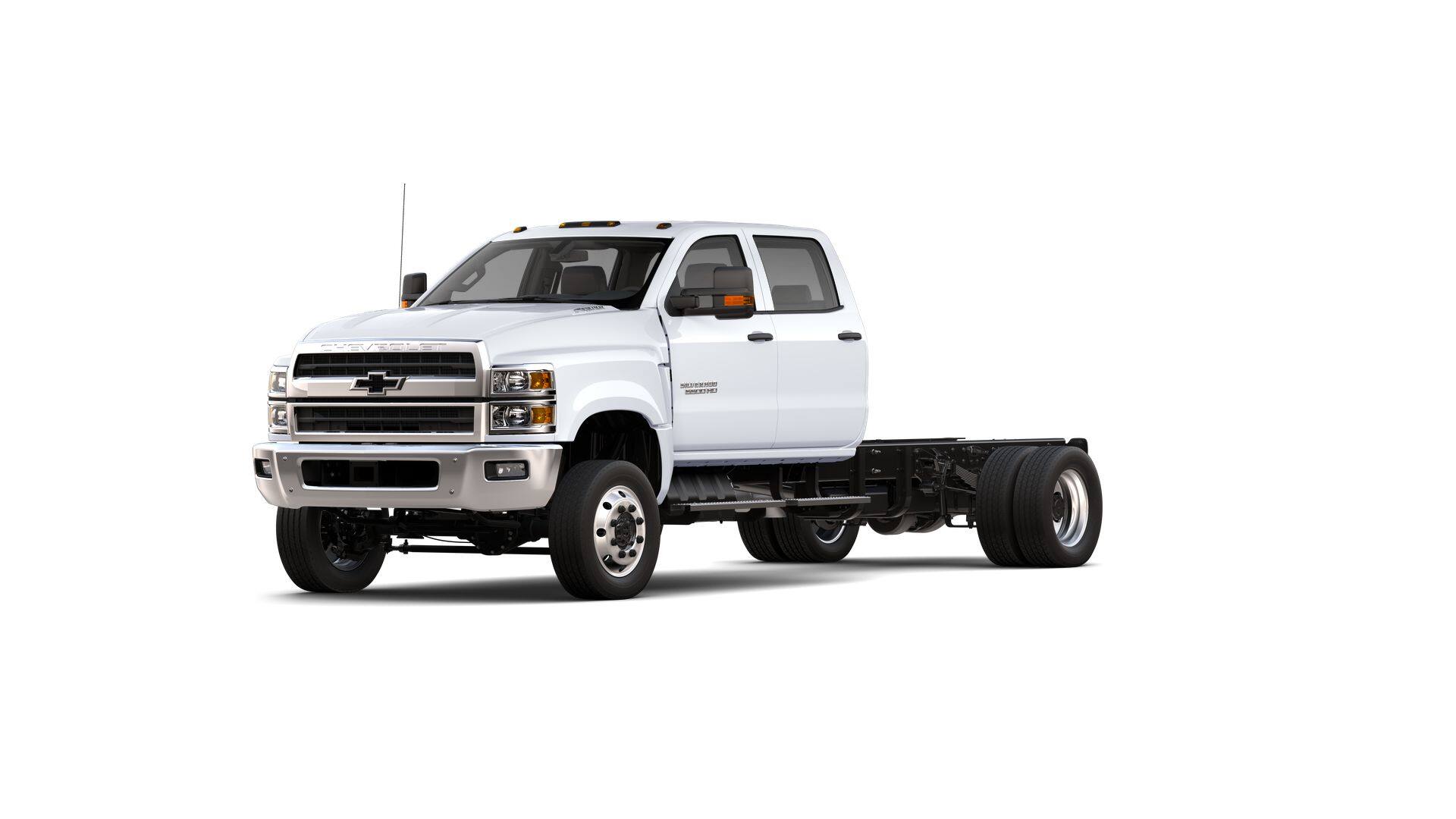

• 5500 HD Series
• Rear suspension, 13,500 lb. (6,123 kg) multi-leaf, vari-rate
• GVWR, 19,500 lb. (8845 kg)
• Wheelbase, 199" (505.5 cm), 84" CA
• Skid Plate, steel, frame-mounted, protects the transfer case from the ground

• Work Truck Preferred Equipment Group includes standard equipment
• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

• Daytime Running Lamps, with automatic exterior lamp control

• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
• Horn, dual-note

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

Snow Plow Prep Package

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 65 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
